Video Equipment Standards

HDMI Connections

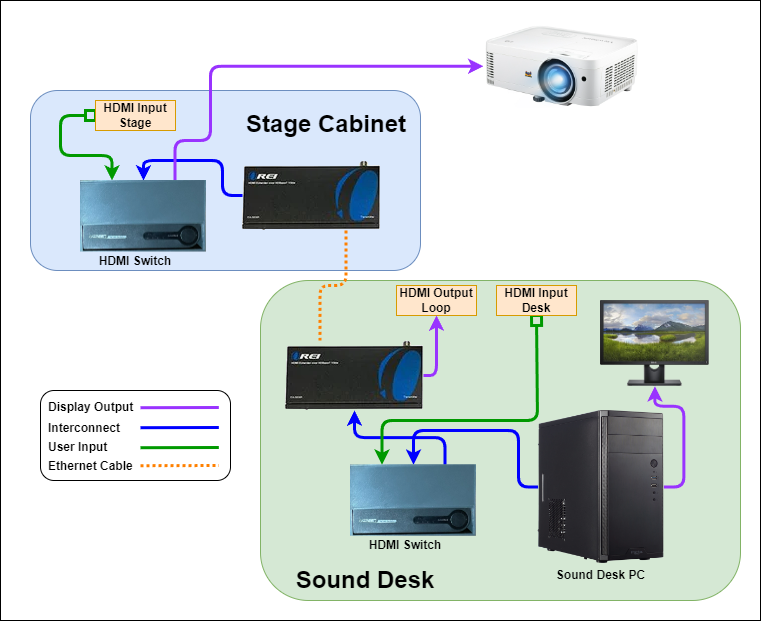

HDMI inputs are available in multiple places to ensure users can connect video output to the hall’s projector as needed. The HDMI cables in the halls should never need to be moved from their standard configuration. For reference the video connections are shown below.

Video inputs to the projector are provided from three locations:

1. permanently attached from the hall PC
2. at the HDMI input at the sound desk
3. at the HDMI input on the stage (Emmanuel and Maranatha: Stage Cabinet. Salaam: Stage left on floor)

Video Configuration

Wireless Streaming

As well as HDMI connections AirPlay, Miracast and Chromecast video and audio streaming to the projector is available via software on the PC. See the detailed instructions HERE.
